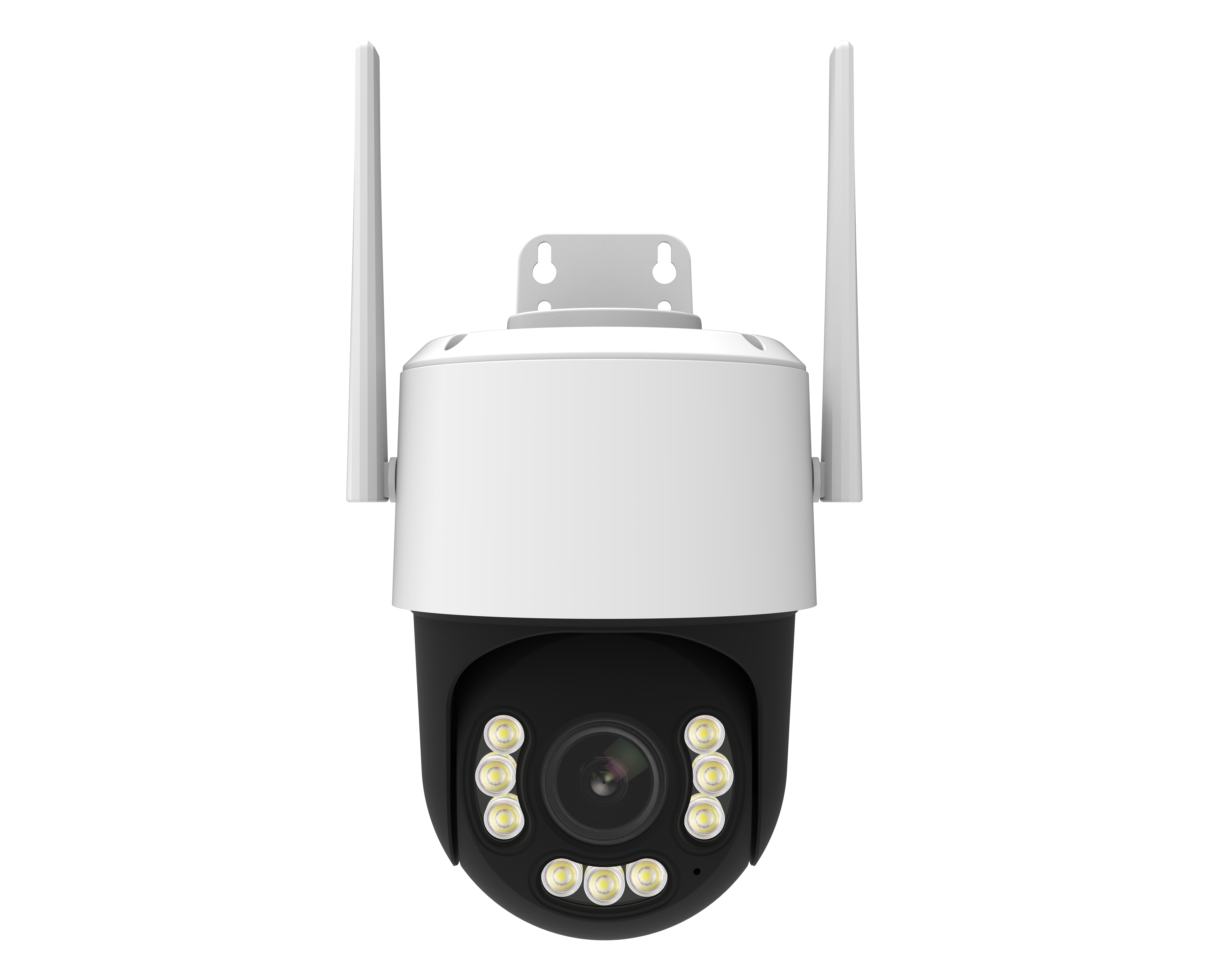

Products Description
Features
● 5 Megapixel ( 2592*1944) 25fps
● 1/2.7”5MP Low Lux progressive scan CMOS
● Color: 0.008Lux@(F2.57,AGC ON), B/W: 0Lux with IR
● Support 2.7-13.5mm optical lens
● 25fps @ 5MP (H.265/H.264)
● H.264/H.265 codec supported, multiple streaming
● Support 3D DNR, WDR, BLC, HLC, Defog
● Support Motion Detection, Human/Vehicle Intrusion Alarm, Line Cross, Loitering, Area Enter/Leave, Facial Recognition, Facial Capture, People Count Statistics, Hard Hat Detection, and Crowd Detection
● Support 1ch alarm output, 1ch alarm input
● Support built-in microphone and built-in speaker
● Support Local TF Storage (Max. up to 512GB)
● IR Light Range: Up to 80 Meters
● IP66, 12VDC
● Support WiFi6
● Support ONVIF, MWP, GB28181, GAT-1400 Protocol for 3rd party integration

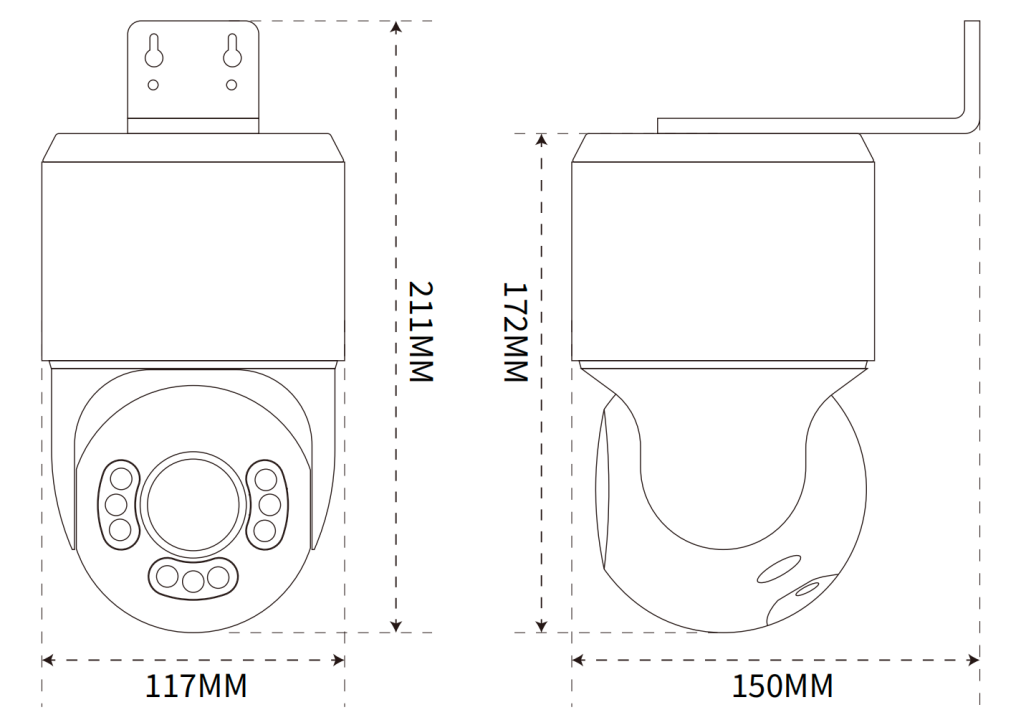

Dimension
Unit：mm
CAMERA | System Structure | Embedded Linux Design, watchdog, Support RTC realtime clock Dual Core Cortex-A7@950MHz+2Gb RAM + 1Tops NPU+FLASH: 2Gb ROM | |||
Image Sensor | 1/2.7” 5MP Low Lux Progressive Scan CMOS | ||||
Dynamic Range | HDR Mode：＞100dB; Linear Mode：83dB | ||||
SNR | 39dB | ||||
Min. Illumination | Color: 0.008Lux@(F2.57, AGC ON), B/W: 0Lux with IR | ||||
Shutter | （1/10 ~ 1/20000） Support auto and manual electronic shutter | ||||
Day/Night Switch | Auto/Manual/Schedule | ||||
BLC | Support, auto adjust | ||||
3D DNR | Support, auto adjust | ||||
LENS | Focal | 2.7mm-13.5mm | |||
Iris | F1.68~F3.18 | ||||
FOV | Wide-Tele Horizontal: 107.6°～32.5°; Vertical: 56.5°～18.3°; Diagonal: 129.1°～37.3° | ||||
PTZ | Pan Range | Horizontal 355° | |||
Tilt Range | -15～90° | ||||
Preset | Support max. 224 presets | ||||
Cruise | Support max. 16 cruises. Duration time and cruise speed can be configured | ||||
Power Off Memory | Support | ||||
ILLUMINATOR | Supplement Light | 9pcs Dual Lights | |||
IR Wavelength | 850nm | ||||
Supplement Light Range | IR：Up to 80 Meters | ||||
VIDEO | Video Compression | H.264 / H.265 | |||
H.264 Type | Baseline Profile/Main profile/High profile | ||||
H.265 Type | Main Profile | ||||
Bit Rate Control | CBR/VBR（50kbps~12288kbps） | ||||
ROI | Support 1 self-configure ROI zone; Mainstream/Substream | ||||
Privacy Mask | Max. support 4 rectangle mask areas | ||||
Max. Resolution | 2592*1944@30fps | ||||
Main Stream | 2592*1944@30fps / 2560*1440@30fps / 1920*1080@30fps / 1280*720@30fps / 720*576@30fps / 640*360@30fps | ||||
Sub Stream | 1280*720@30fps / 720*576@30fps / 640*360@30fps | ||||
Picture Parameter Config | Brightness, Contrast, HUE, Saturation, Sharpness can be configured | ||||
AUDIO | Audio Compression | G.711ulaw/G.711alaw/PCM | |||
Audio Bit Rate | 64 Kbps（G.711ulaw/G.711alaw） | ||||
Audio Sampling Rate | 8 kHz | ||||
Audio 3A | Support; Acoustic Echo Cancel (AEC) / Automatic Noise Suppression(ANS) / Automatic Level Control (ALC) | ||||
Audio Language | Built-in Chinese/English audio alarm sound | ||||
NETWORK | Protocol | TCP/IP，UDP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, SSL/TLS, FTP, DNS, DDNS, PPPoE, 802.1X, IPv4, IPv6, QoS, WebSocket | |||
Interface Protocol | ONVIF, MWP, GB28181/2016&2022、GAT-1400 | ||||
Security | Support username / password change, ONVIF password authentication, RTSP password authentication, IP address filtering | ||||
OSD | Title, date and time OSD, Support 7 lines self-defined OSD | ||||
System Upgrade | Support CMS, Web and online OTA upgrade | ||||
WiFi | WiFi Frequency | 2.4GHz (Support WiFi6) | |||
Support Standard | 802.11b/g/n/ax | ||||
Transmission Speed | Max：229Mbps | ||||
IMAGE ENHANCEMENT | Image Rotation | Support image mirror and flip | |||
Iris Mode | Support auto Iris and manual Iris | ||||
Corridor Mode | Support Corridor Mode | ||||
AI ISP | Support AI ISP | ||||
Anti-Flickering | Support anti-flicker function for complex light environment | ||||
Network Disconnect | Support 3 network mode (disconnect reboot / disconnect does not reboot / offline mode) | ||||
Web Language | Built-in multiple language | ||||
INTERFACE | Power Interface | 1pc DC12V power interface； | |||
Network Interface | RJ45 Network; 10M/100M adaptive | ||||
On-board Storage | Built-in Micro SD Card Slot（Max. support 512GB） | ||||
Audio Input | Built-in microphone | ||||
Audio Output | Built-in speaker | ||||
Alarm Input | 1ch alarm input | ||||
Alarm Output | 1ch alarm output | ||||
Normal Event | Alarm Linkage | Motion Detection | |||
BEHAVIOUR ANALYSIS | AI Event | Human/Vehicle Intrusion Alarm / Line Cross / Loitering/Area Enter/Leave | |||
AI ALGORITHM | Behaviour Analysis (Enable 1 at a time) | ||||
AI Type | Intrusion | Line Cross | Loitering / Enter/Leave | ||
Trigger Type | Human/Vehicle | Human | Human | ||
Detect Speed | ≤200ms | ≤200ms | ≤200ms | ||
Sensitivity | 5 level | 5 level | 5 level | ||
Detect Areas | Max. 4 areas | 1 area | 1 area | ||
Linkage | Sound / Light / Alarm Output / Platform | Sound / Light / Alarm Output / Platform | Sound / Light / Alarm Output / Platform | ||
Others | Each area support independent alarm linkage | Line Cross Direction | Loitering Time Setup | ||
AI ALGORITHMS (Enable 1 at a time) | |||||
Face Capture | Can detect 30 faces at a time Snap Mode: Fast Snapshot, Quality Snapshot, Schedule Snapshot, Fast&Quality Snapshot Support moving faces detect, snapshot, score, track, filter and send the best quality picture to platform Output Picture: Face Picture/Half body picture optional and Background picture Background Picture Resolution: 2560*1440, 1920*1080, 1280*720 optional Support background picture supports OSD capture time overlay Support Sound / Light / Alarm Output / Platform | ||||
Facial Recognition | Facial Library: ≦2000pcs Can recognize 15 faces at a time Support Blacklist/Whitelist/Strangers alarm and snapshot push Snap Mode: Fast Snapshot, Quality Snapshot, Schedule Snapshot, Fast&Quality Snapshot Support moving faces detect, snapshot, score, track, filter and send the best quality picture to platform Output Picture: Face Picture/Half body picture optional and Background picture Background Picture Resolution: 2560*1440, 1920*1080, 1280*720 optional Support background picture supports OSD capture time overlay Support Sound / Light / Alarm Output / Platform | ||||
Hard Hat Detection | Support Hard Hat Detection (can support different colour hard hat detection: black, blue, red, white, yellow) | ||||
Crowd Detection / Absence Detection | Crowd Detection | Absence Detection | |||
Full Screen Picture Can set over-load people threshold and max. loitering time allowed Support Sound / Light / Alarm Output / Platform | Full Screen Picture Can set min. people threshold and max. loitering time allowed Support Sound / Light / Alarm Output / Platform | ||||
People Count Statistics | Can generate People Count Statistics Bar/Line Chart | ||||
OTHERS | Operational Temperature/Humidity | -30℃~65℃ / ≤95%RH | |||
Power Supply | DC 12V | ||||
Materials | Aluminium+ABS | ||||
Protection | IP66 | ||||
Dimension | Φ117mm*172mm | ||||
