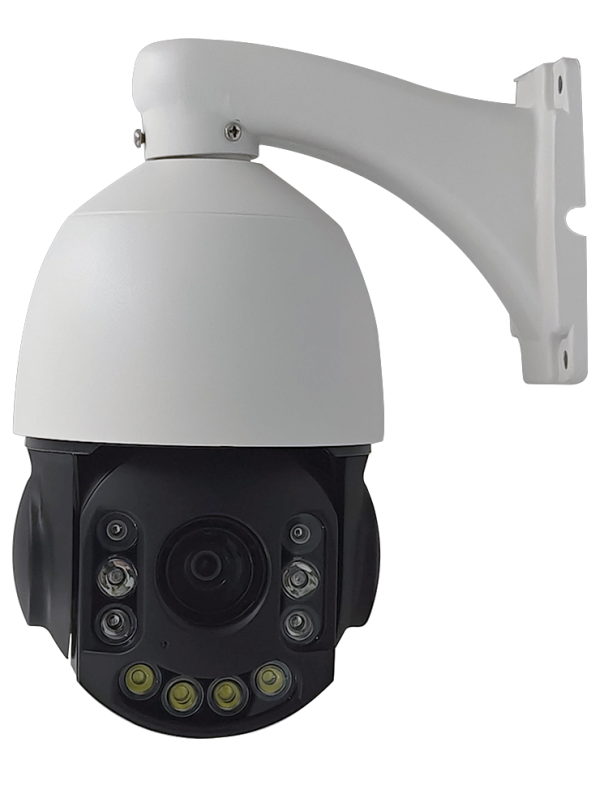

Products Description
Features
● 5 Megapixel ( 2960*1664) 25fps
● 1/2.7”5MP Low Lux progressive scan CMOS
● Color: 0.008Lux@(F1.6,AGC ON), B/W: 0Lux with IR
● Support 6-120mm optical lens
● 25fps @ 5MP (H.265/H.264)
● H.264/H.265 codec supported, multiple streaming
● Support 3D DNR, DWDR, BLC, HLC, Defog
● Support Motion Detection, Human/Vehicle Intrusion Alarm, Line Cross, Loitering, Area Enter/Leave, Facial Recognition, Facial Capture, People Count Statistics, Hard Hat Detection, and Crowd Detection
● Support 1ch alarm output, 1ch alarm input
● Support 1ch audio input, 1ch audio output and 1ch built-in speaker
● Support local TF Storage (Max. up to 512GB)
● IR Light Range: 100 Meters

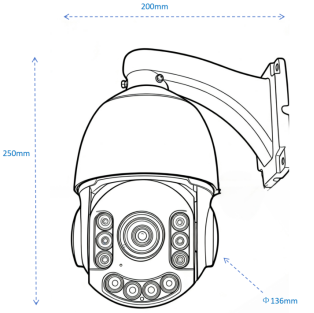

Dimension
Unit：mm
CAMERA | System Structure | Embedded Linux Design, watchdog, Support RTC realtime clock Dual Core Cortex-A7@950MHz+2Gb RAM + 1Tops NPU+FLASH: 2Gb ROM | ||
Image Sensor | 1/2.7” 5MP Low Lux Progressive Scan CMOS | |||
Dynamic Range | HDR Mode：＞100dB; Linear Mode：83dB | |||
SNR | 39dB | |||
Min. Illumination | Color: 0.008Lux@(F2.57, AGC ON), B/W: 0Lux with IR | |||
Shutter | （1/10 ~ 1/20000） Support auto and manual electronic shutter | |||
Day/Night Switch | Auto/Manual/Schedule | |||
BLC | Support, auto adjust | |||
3D DNR | Support, auto adjust | |||
LENS | Focal | 6mm-120mm | ||
Iris | F2.57~F3.85 | |||
FOV | Wide-Tele Horizontal： 52.12°～3.36° Vertical：29.75°～1.9° Diagonal：59.36°～3.84° | |||
PTZ | Pan Range | Horizontal 360° continuous rotate | ||
Tilt Range | -15～90° | |||
Pan Speed | 0.1°-90°/s Speed can be configured | |||
Tilt Speed | 0.1°-60°/s Speed can be configured | |||
Preset | Support max. 255 presets | |||
Cruise | Support max. 16 cruises. Duration time and cruise speed can be configured | |||
Watch Position | Support | |||
Schedule Task | Support | |||
Power Off Memory | Support PTZ Power Off Memory | |||
ILLUMINATOR | Supplement Light | 2pcs Laser Lights + 4pcs high consumption IR Lights + 4pcs white lights | ||
Control Type | 3 groups of supplement lights auto trigger by zoom ratio | |||
IR Wavelength | 850nm | |||
White Light Color Temperature | 6000K-6500K | |||
Supplement Light Range | IR：≤100m | |||
VIDEO | Video Compression | H.264 / H.265 | ||
H.264 Type | Baseline Profile/Main profile/High profile | |||
H.265 Type | Main Profile | |||
Bit Rate Control | CBR/VBR（50kbps~12288kbps） | |||
ROI | Support 1 self-configure ROI zone; Mainstream/Substream | |||
Privacy Mask | Max. support 4 rectangle mask areas | |||
Max. Resolution | 2592*1944@30fps | |||
Main Stream | 2592*1944@30fps / 2560*1440@30fps / 1920*1080@30fps / 1280*720@30fps / 720*576@30fps / 640*360@30fps | |||
Sub Stream | 1280*720@30fps / 720*576@30fps / 640*360@30fps | |||
Picture Parameter Config | Brightness, Contrast, HUE, Saturation, Sharpness can be configured | |||
AUDIO | Audio Compression | G.711ulaw/G.711alaw/PCM | ||
Audio Bit Rate | 64 Kbps（G.711ulaw/G.711alaw） | |||
Audio Sampling Rate | 8 kHz | |||
Audio 3A | Support; Acoustic Echo Cancel (AEC) / Automatic Noise Suppression(ANS) / Automatic Level Control (ALC) | |||
Audio Language | Built-in Chinese/English audio alarm sound | |||
NETWORK | Protocol | TCP/IP，UDP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, SSL/TLS, FTP, DNS, DDNS, PPPoE, 802.1X, IPv4, IPv6, QoS, WebSocket | ||
Interface Protocol | ONVIF, MWP, GB28181/2016&2022、GAT-1400 | |||
Security | Support username / password change, ONVIF password authentication, RTSP password authentication, IP address filtering | |||
OSD | Title, date and time OSD, Support 7 lines self-defined OSD | |||
System Upgrade | Support CMS, Web and online OTA upgrade | |||
IMAGE ENHANCEMENT | Image Rotation | Support image mirror and flip | ||
Iris Mode | Support auto Iris and manual Iris | |||
Corridor Mode | Support Corridor Mode | |||
AI ISP | Support AI ISP | |||
Anti-Flickering | Support anti-flicker function for complex light environment | |||
Network Disconnect | Support 3 network mode (disconnect reboot / disconnect does not reboot / offline mode) | |||
Web Language | Built-in multiple language | |||
INTERFACE | Power Interface | 1pc power interface；DC 12VDC / 24VAC adaptive | ||
Network Interface | RJ45 Network; 10M/100M adaptive / POE: IEEE 802.3at max 25w | |||
On-board Storage | Buiilt-in Micro SD Card Slot（Max. support 512GB） | |||
Audio Input | 1ch audio input (RCA) | |||
Audio Output | built-in speaker + 1ch audio output (RCA) | |||
Alarm Input | 1ch alarm input | |||
Alarm Output | 1ch alarm output | |||
Normal Event | Alarm Linkage | Motion Detection | ||
BEHAVIOUR ANAYLITICS | AI Event | Human/Vehicle Intrusion Alarm | ||
AI ALGORITHM | Perimeter Protection (Enable 1 at a time) | |||
AI Type | Intrusion | Line Cross | Loitering / Enter/Leave | |
Trigger Type | Human/Vehicle | Human | Human | |
Detect Speed | ≤200ms | ≤200ms | ≤200ms | |
Sensitivity | 5 level | 5 level | 5 level | |
Detect Areas | Max. 4 areas | 1 area | 1 area | |
Linkage | Sound / Light / Alarm Output / Platform | Sound / Light / Alarm Output / Platform | Sound / Light / Alarm Output / Platform | |
Others | Each area support independent alarm linkage | Line Cross Direction | Loitering Time Setup | |
AI ALGORITHMS (Enable 1 at a time) | ||||
Face Capture | Face Picture/Half body picture optional Support Sound / Light / Alarm Output / Platform | |||
Facial Recognition | Face Picture/Half body picture optional Blacklist/Whitelist Support Sound / Light / Alarm Output / Platform | |||
Absent Alarm | Full Screen Picture Can set time duration that allowed to leave Support Sound / Light / Alarm Output / Platform | |||
Crowd Detection | Full Screen Picture Can set over-load people threshold Support Sound / Light / Alarm Output / Platform | |||
People Count Statistics | Can generate People Count Statistics Bar/Line Chart | |||
OTHERS | Operational Temperature/Humidity | -30℃~65℃ / ≤95%RH | ||
Power Supply | DC 12VDC/24VAC / POE: IEEE 802.3at max 25w | |||
Consumption | ≤20W | |||
Device Weight | Net Weight: 1.6kg; Gross Weight: 2.1kg | |||
Materials | Aluminium+ABS | |||
Protection | IP66 | |||
Dimension | Φ200mm*250mm | |||
