CAMERA

System Structure

Embedded Linux Design, hard compression, watchdog

Dual Core Cortex-A7@950MHz +1.0 Tops NPU + 2Gb RAM + 2Gb ROM

Sensor Type

1/1.8” 4MP Super Low Lux Progressive Scan CMOS

Shutter

Support auto /manual electronic shutter

Shutter Speed

1/10 to 1/20,000 sec

WDR

>120db  Support HDR

SNR

42dB

Day & Night

24/7 Color Imaging

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Image Enhancement

Support multi level 3D noise reduction, BLC, HLC, ROI etc.

Video Rotate

Flip, Mirror

Corridor Mode

Support

Focus Mode

Auto / Manual

Anti-Flickering

Support

AI ISP

Support

Other Enhancement

Support picture defog function / AE support auto exposure, AWBQ auto balance, AF auto focus, Support 2 frame WDR

LENS

Focal

6mm

Aperture

F1.0

FOV

Horizontal: 57.1°,  Vertical: 30.4°,  Diagonal: 66.3°

ILLUMINATOR

Supplement Light Type

IR Light + White Light

Number of LEDs

4pcs Warm Light LEDs + 8pcs IR LEDs

IR Wavelength

850nm

White Light Color Temperature

4000K-4500K

Supplement Light Range

Up to 50 Meters

VIDEO

Video Compression

H.264 / H.265

H.264Type

Baseline Profile / Main Profile / High Profile

H.265Type

Main Profile

Bit Rate Control

CBR/VBR (50kbps~12288kbps)

ROI

Self-defined ROI；mainstream / sub-stream can each set 1 ROI area

Privacy Mask

Can configure 4 rectangle mask areas

Max. Resolution

2688*1520@30fps

Main Stream

30fps (2688*1520, 1920*1080，1280*720, 720*576, 640*360)

Sub Stream

30fps (1280*720, 720*576, 640*360)

AUDIO

Audio Compression

G.711ulaw/G.711alaw/PCM

Audio Bit Rate

64 Kbps（G.711ulaw/G.711alaw）

Audio Sampling Rate

8 kHz

Audio 3A

Support; Acoustic Echo Cancel (AEC) / Automatic Noise Suppression(ANS) / Automatic Gain Control (AGC)

NETWORK

Protocol

IPv4/IPv6, TCP/IP，UDP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, SSL/TLS, FTP, DNS, DDNS, PPPoE, IGMP, 802.1X, QoS, WebSocket

Interface Protocol

ONVIF, GB28181/2016&2022, GAT-1400, MWP

Security

ONVIF password authentication, RTSP password authentication, IP address filtering, User Access log, Digest login authentication

OSD

Title, date and time OSD
support 7 lines self-defined OSD, each line can displayed up to 64 characters

Simultaneous Live View

Up to 20 channels (mobile view up to 8 channels)

Web-page Language

Simplified Chinese, English, Vietnamese

System Upgrade

Support Client software, Web and online OTA upgrade

INTERFACE

Power Interface

12VDC

Network Interface

RJ-45 (10/100BASE-T)

Onboard Storage

Micro SD Card Slot（Max. Support 512GB TF Card)

Audio Output

1pcs built-in Speaker, 1ch RCA Output (line out)

Audio Input

Built-in high sensitivity microphone

Alarm Output

1ch

Alarm Input

1ch

Hardware Reset

Support

Normal Event

Alarm Linkage

Motion Detection; Human & Vehicle Intrusion

AI Event

Analytic

License Plate Recognition (VN)

Alarm

Alarm Triggers

Normal Event, AI Event, Alarm Input

Alarm Event

Push Notification via mobile APP and Client Software at event triggers,

Micro SD recording at event triggers,

White Light Flashing,

Voice Message alarm

License Plate Parameters

Recognition Type

Vietnam License Plate (Motorbike and Normal Vehicle)

Detection Area

Default Full Screen. Max. set one detection area

Recognition Rate

≥99%

Recognition Speed

≤200ms

Parameters

Support License Plate, Vehicle Type

Trigger Mode

Support Voice Message Alarm, Light Alarm and Alarm output

Others

Boot and Operational Temperature/Humidity

-30℃~65℃  / ≤95%  (no condensation)

Power Consumption

DC12V / PoE

Material

Aluminum

Protection

IP67

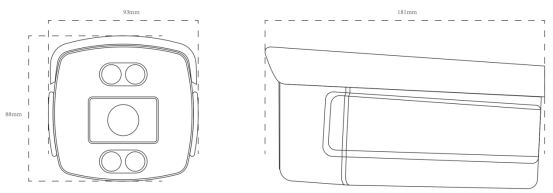

Product Dimension

L181mm*W93mm*88mm
