Swing Gate Product Features:

Features a unique transmission system ensuring precise and reliable zero-position locking and unlocking. Anti-pinch and anti-collision functions automatically halt the motor within a preset time when encountering resistance during arm reset, followed by a default delay before resetting. Arm opening speed is customizable. Equipped with a brushless DC motor, top cover made of 1.5mm stainless steel (national standard), and body constructed from 1.0mm 304 stainless steel (national standard).

Swing Gate Product Application:

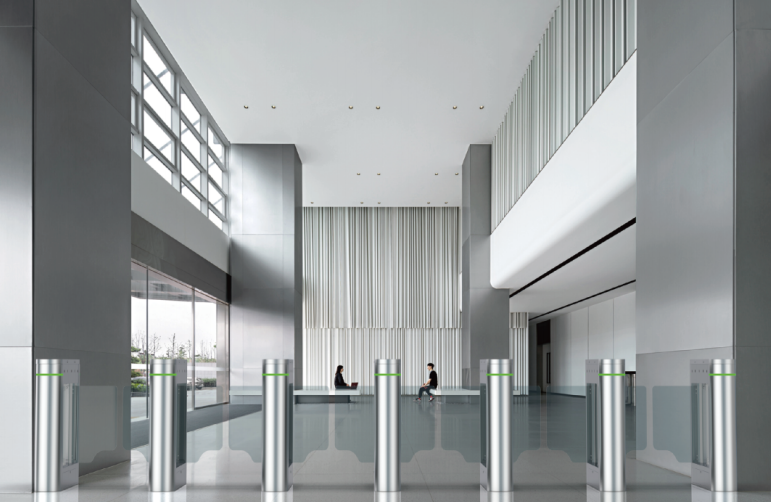

Suitable for pedestrian access control and automated ticketing management in schools, airports, subways, libraries, office buildings, theaters, commercial complexes, factories, tourist attractions, stations, and recreational facilities. The turnstile provides basic deterrent-level access control for public passageways. It includes an emergency override mechanism that automatically opens the swing arm during power outages to maintain unobstructed passage. Upon power restoration, the barrier automatically resets. Suitable for all architectural environments, it comprehensively addresses pedestrian access control requirements.

Swing Gate Key Specifications:

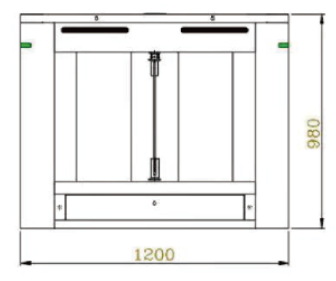

1. Enclosure Dimensions: L1200 × W200 × H980mm

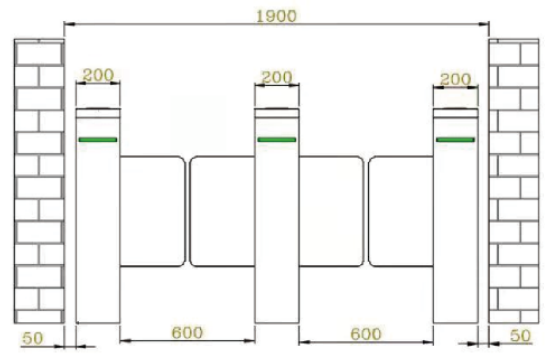

2. Passage Width: 600–800mm

4. Weight: 60KG

5. Exterior Material: 304 Stainless Steel

6. Standard Configuration: 4 pairs of anti-pinch infrared sensors (2 pairs anti-pinch, 2 pairs logic infrared), LED indicator lights, voice speaker, DC brushless motor, dual mechanical infrared anti-pinch protection

7. Card Reader Windows: 1-2

8. Throughput Speed: 25-35 people/minute

9. Door Open/Close Time: 1-2 seconds

10. Time to Enter Passage Mode After Power-Up: 3 seconds

11. Operating Environment: Indoor or Outdoor

12. Operating Temperature: -40°C to 80°C

13. Operating Humidity: 5% to 90%

Swing Gate Product Features:

1. Embedded motherboard design with comprehensive multi-function modules

2. Supports standalone or networked operation

3. Self-reporting fault alerts for convenient maintenance

4. Passage indication, lane indication (ultra-bright outdoor display)

5. Normally open button (holds gate in open/closed state when pressed)

6. Automatic opening during power failure, automatic closing upon power restoration

7. Automatic gate closing/opening (time adjustable)

8. Controlled access/infrared sensor free passage, freely configurable

9. Card access permissions: single/multiple entries

10. Tampering intrusion alarm

11. Dual anti-pinch protection (mechanical and infrared)

12. Circuit self-test

13. Remote control switch for special requirements and fire safety needs

14. External electrical interface for connecting various reader/writer devices, facilitating system integration

15. Counting function (optional)

16. Lightbox advertising (optional)

17. Various barrier styles available
